Send email block

---

The HTTP request block in J‑Graph allows the bot to send emails to the specified email address.

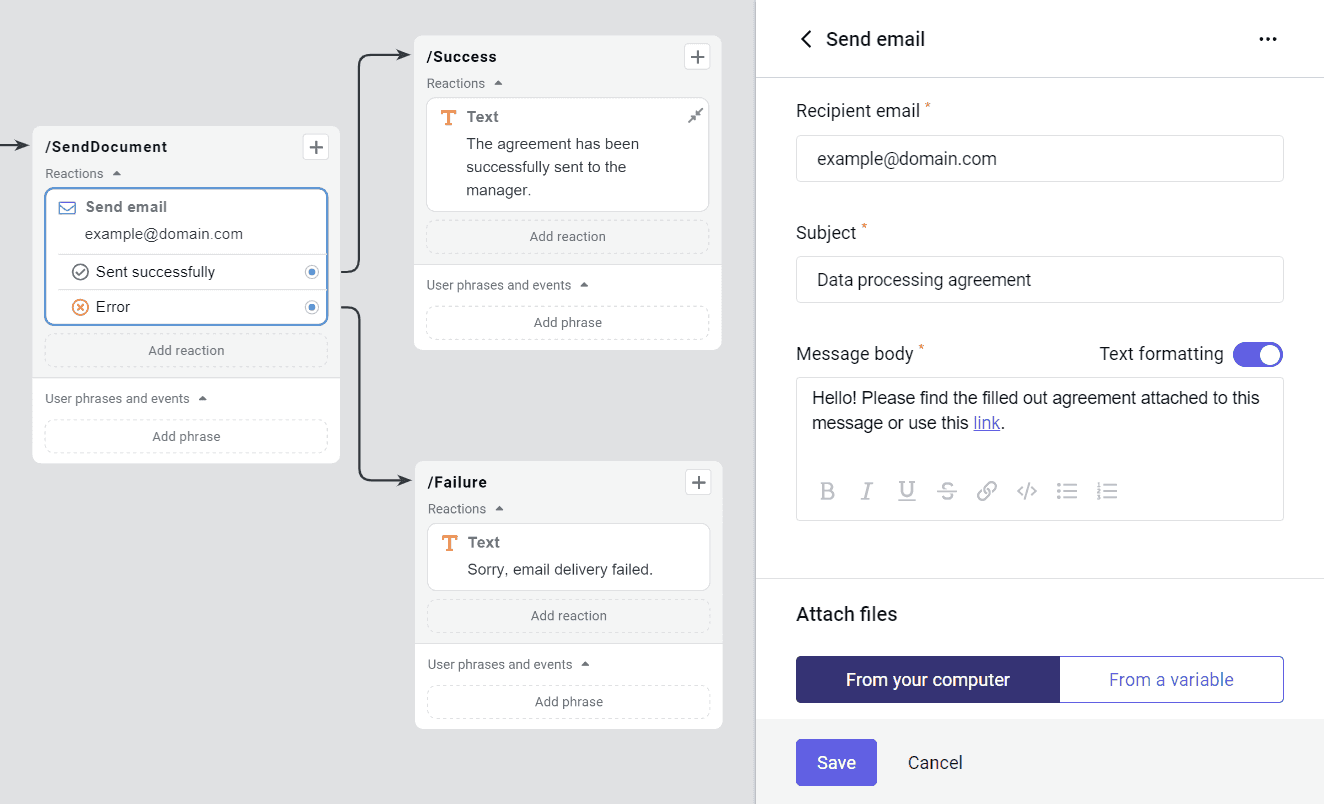

Block settings

To add a block to the script:

1. Select Send email in the list of action blocks.
2. Configure the required message parameters:
   • Recipient email.
   • Subject.
   • Message body.

     The message body can be formatted using HTML markup.

Inside every field, you can use value substitutions inside the {{}} brackets. The brackets can contain any valid JavaScript expression, such as a built-in variable reference:

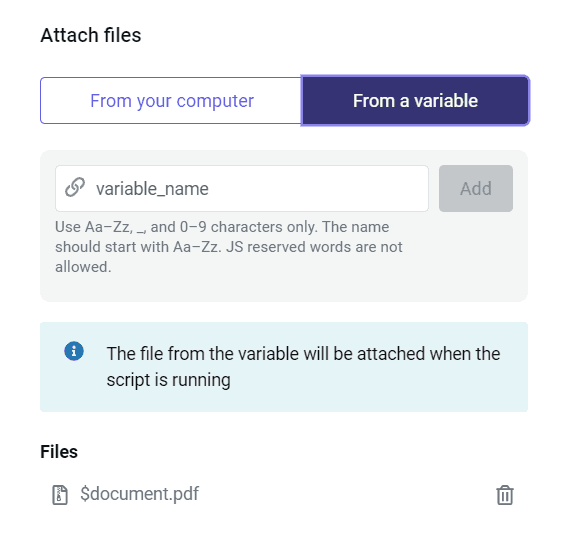

File attachments

There are two ways to attach files to the message:

• Upload a file from your device.
• Specify the name of a session variable containing the link to the file.

Here, the file will be attached to the email using the link from $session.document.

The file size cannot exceed 25 MB.

Block transitions

A Send email block can have up to two links to other script states:

• Sent successfully.
• Error.
