States

---

In J-Graph, states are the units building up the bot business logic: waiting for the user actions and reacting to them.

In JAICP DSL, states correspond to the state tag.

Creation

There are two ways to create a new state in J-Graph:

• Click in the top left corner.
• Right-click anywhere on the canvas or tap the touchpad using two fingers.

During state creation, you can:

• Configure its name. Renaming is only possible from the source code editor.
• Nest the state into another. In this case, these two states will form a group.
• Immediately populate the state with a reaction block or an action.

Selection and dragging

Action	Mouse	Touchpad
Select an existing state	Click the left or middle mouse button on the state.	Place the cursor on the state and tap the touchpad.
Drag a state around	Click and hold down the left or middle mouse button on the state, then move the cursor.	Double-tap the state and drag your finger without lifting it.

Multiple selection and dragging of several states at once is currently not implemented.

Editing

When you select a state, the editing menu appears on the right. This is where you can edit existing state blocks, add new ones, as well as view the links between other states and the one selected.

Blocks

States consist of blocks — elements which describe the user and bot behavior in the context of states. You can do the following actions with blocks:

• Create: select a block of the necessary type and fill out the required parameters.

• Edit: select an existing block.

• Delete: click  → Delete and confirm the action.

• Reorder: hover over a block, hold down , and drag it to the position where you need it.

  Order is significant only for reaction blocks.

Also in the state editing menu, you can create new expected paths. However, in contrast to blocks, they are unavailable for editing and deletion from this menu.

Links

States are interconnected with links — lines which visualize the possible transitions from one state to another. In combination, states and links form a coherent bot script.

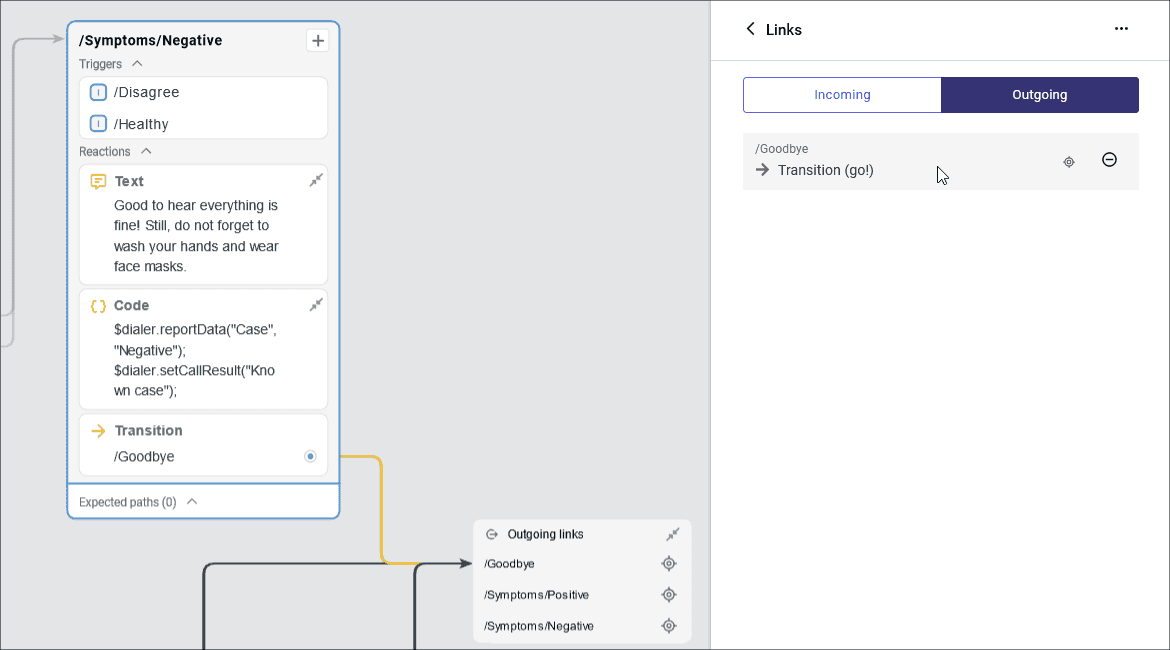

To view all incoming and outgoing links belonging to the state, click  → Links. The appropriate link is highlighted on the canvas when you hover over it.

• Click next to the link to navigate to the linked state.
• Click to break the link.

Labels

You can annotate states with labels to record some additional information. This may be a description of the business goal achieved by the bot on entering the state or an arbitrary comment.

Labels are treated as dialog results in project analytics.

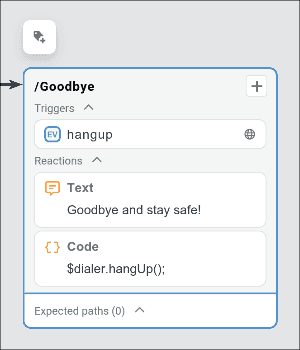

To add a label to a state, hold the cursor on the state for a couple of seconds, then click the icon which will appear above the state. Enter the label text and optionally configure its color. Click on an existing label to change it.

Search

When you need to navigate around massive bot scripts, you can search for states by their names. Make the search menu appear by either:

• Clicking the icon in the top right corner.
• Pressing Ctrl + F (also ⌘ + F on macOS).

The state selected among the search results appears in the center of the canvas viewport.
